Overview

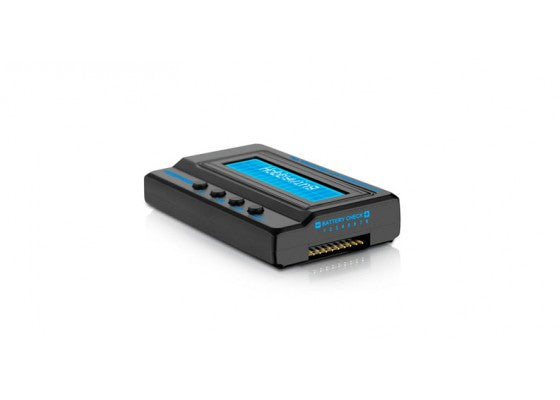

This multifunction program box is for programming HobbyWing brushless ESCs. Its friendly LCD interface makes ESC programming easy and quick. With a PC, you can upgrade ESC firmware and further adjust ESC parameters online. Besides, it’s compact, portable and very applicable for field use.

• This multifunction LCD program box is applicable for the following HobbyWing products:
• Platinum series of brushless aircraft ESCs, XeRun series &EzRun series of brushless car ESCs, Seaking Pro series of brushless boat ESCs

Specifications

• Size：91x51x17mm（LxWxH）
• Weight：65g
• Input Voltage: 4.5V—12.6V(a separate battery is needed for powering this program box when ESC has no built-in/external BEC)
• Interface: TYPE-C USB， ESC interface(Futaba plug), Power supply interface（Futaba plug）
