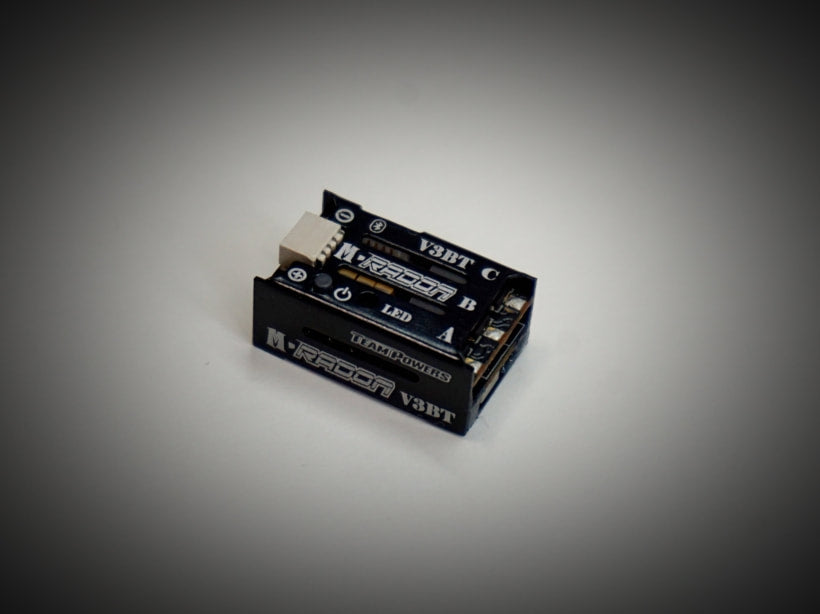

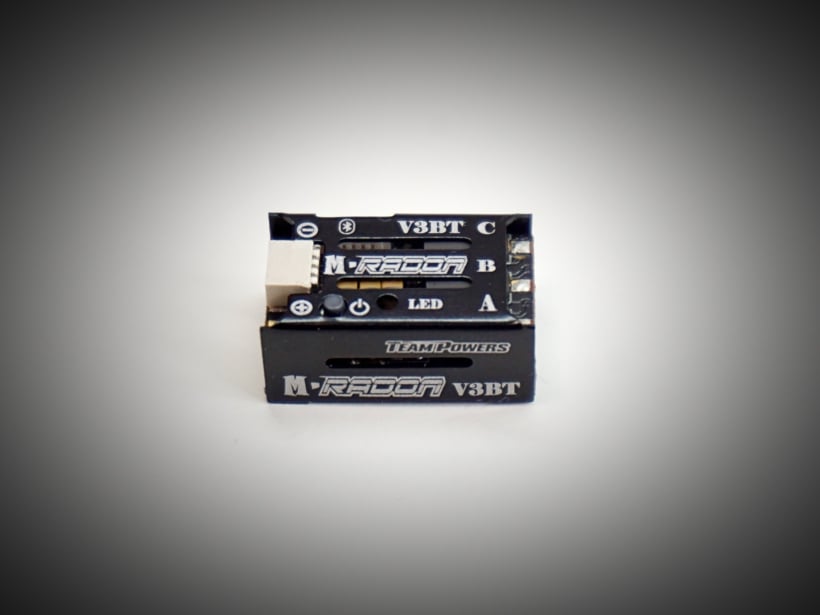

TPRMRADONV3BT

Upgraded features from M-Radon V2.1:

. Change to 32-bit MCU with ultra-smooth, faster response with precise throttle and braking control. More top end power with the same item function setup.

. Support ~2.5A BEC ampere drawn which is raised up by ~60%.

. Support ~30A instant ampere drawn by the motor which is raised up by ~50%.

. All wire are exposed to open area for easy soldering.

. Built-in Bluetooth device for advanced programming and firmware update through the Mobile APPS.

. APPS will be available on both IOS and Android.

. Real Time Data Analysis through Mobile APPS(Current Input & Output Throttle, Temperature, RPM, Adv. Timing, Voltage and min. voltage, Max Temperature, RPM & Adv. Timing).

Software:

. It is a new developed software with more advanced item functions added which is closed to the same as Radon Pro V5BT.

. Each item have small step to fine tune.

. All update item functions information can be reviewed from the photos attached.

Specification:

- Battery Input Voltage: 2S lipo

- BEC: 6V/2.5A

- 1/27 motor Limit: 10000kv or below

- Max Ampere draw: ~30A per phase

- Size: ~22.5x13.5x9mm(not include the plug)

- Weight: ~5g(without any wire installed)
