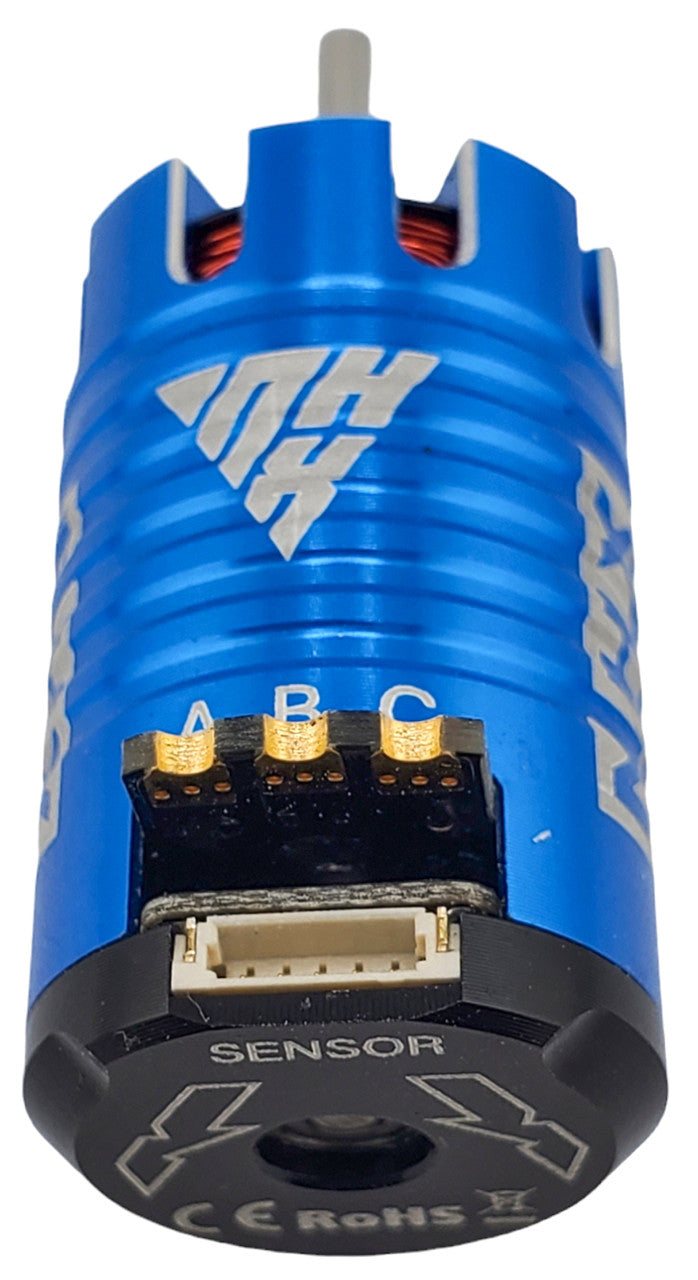

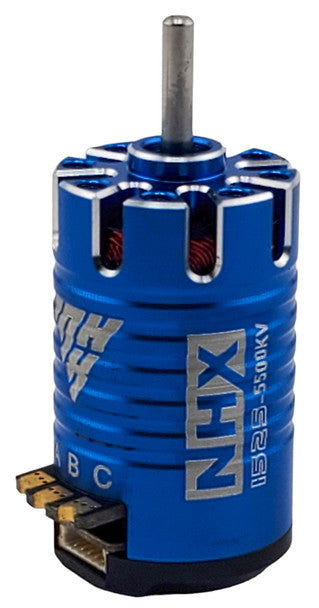

1525 2-Pole 5500KV Sensored Brushless Motor

High-Efficiency Power in a Compact Design – Perfect for 1/24 and 1/28 Scale RC Vehicles

The all-new 1525 2-Pole Sensored Brushless Motor delivers premium performance in a micro-sized package. Designed for competitive RC applications, this motor provides up to 80W of maximum power with an impressive 92% output efficiency. Whether you prefer Sensored or Sensorless startup, this motor adapts to your driving style.

🔧 Key Features:

• Dual-Mode Startup: Supports both Sensored and Sensorless operation.
• High-Efficiency Performance:
  • Powerful 2-pole rotor with high-temp magnets (up to 200°C).
  • 0.2mm silicon steel stator achieves up to 94% energy conversion.
  • High slot rate design for increased power with reduced resistance.
• Premium Build Components:
  • NSK bearings from Japan for smooth high-speed performance.
  • Gold-plated thick PCB board ensures reliable ESC connection.
  • American MWS red wire for high-grade conductivity.
  • Sensor port compatible with standard sensor cables.
• Precision-Balanced Rotor: Balanced with a German Schenker machine for ultra-smooth operation.
• Turbo Timing Capable: Reach speeds of up to 60,000 RPM when turbo timing is enabled.
• Durable Aluminum Alloy Housing: Lightweight and highly stable under load.

📐 Specifications:

📦 Package Includes:

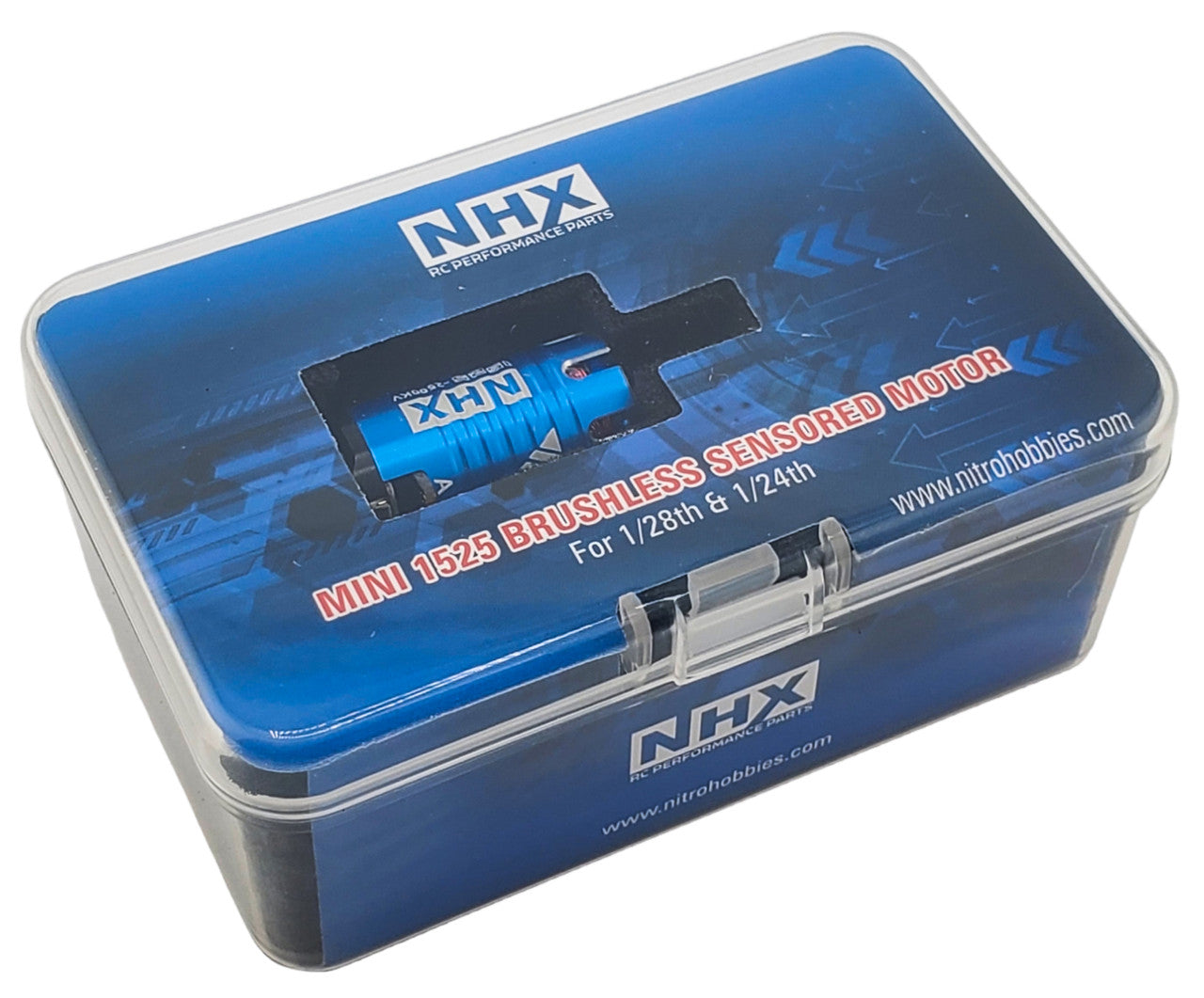

• 1 × 5500KV Mini 1525 2-Pole Sensored Brushless Motor
• 1 × Sensor/Connecting Cable

Ready to upgrade your 1/24 or 1/28 scale RC vehicle? The 1525 Sensored Brushless Motor delivers elite performance in a compact form factor — ideal for racers and hobbyists alike.
