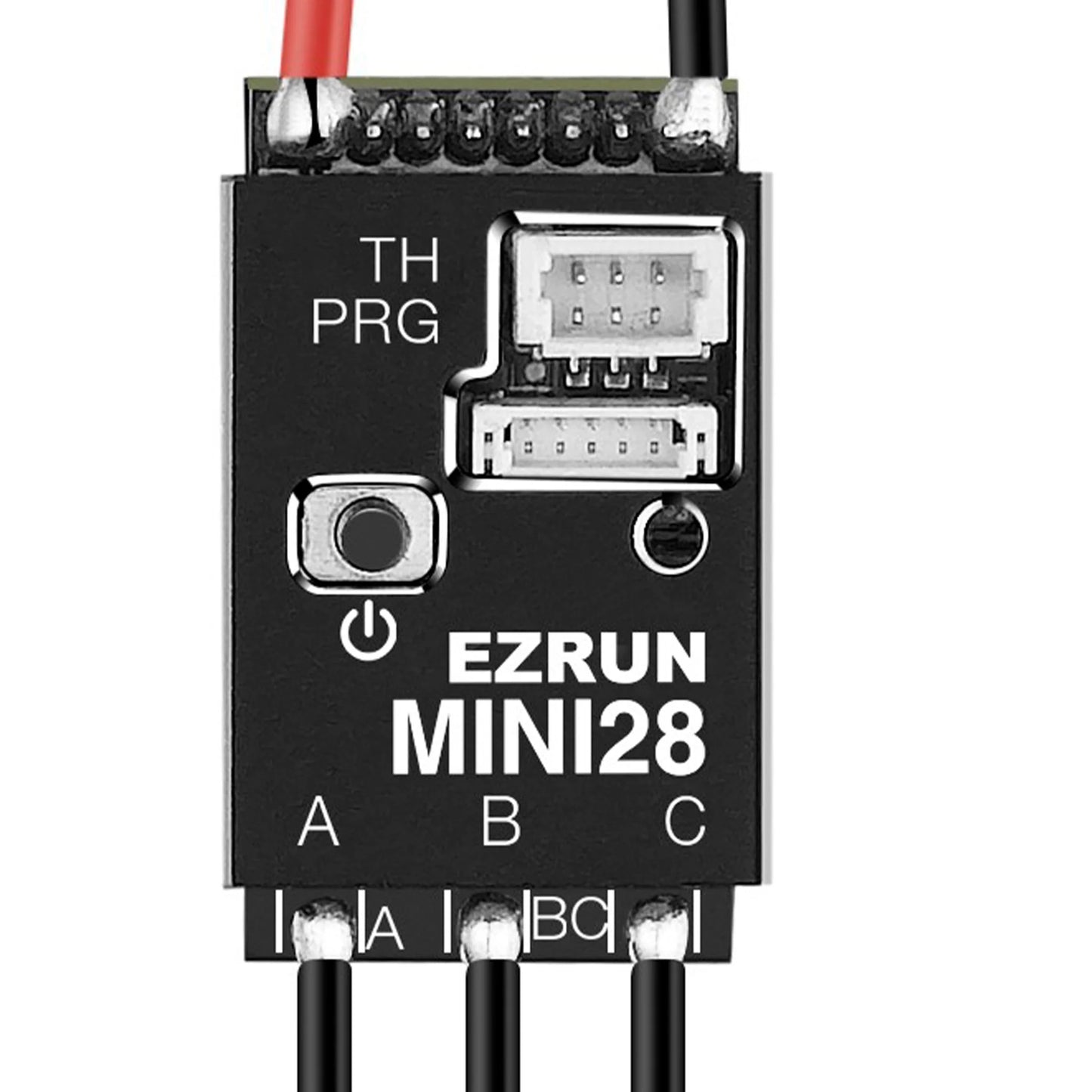

EZRUN Mini28 ESC

Built specifically for 1/28th

scale racing model The powerful software and hardware are built into the Mini28 ESC. It features new programmable parameters and

is optimized for 1/28th competitions.

Petite and lightweight The ESC is extremely small (22mm by 14mm) and light in weight (5g). The shape is designed for ease of welding and reduces unnecessary tweak. Essentially, this is an important

factor for a 28th scale size mini-z racing car.

High power, low temperature The fully-alloy heat sink ensures that the ESC is able to dissipate heat and operates at a healthy temperature range

while the maximum output current can be up to 30A

Built-in dual app mode

The ESC is equipped with two modes of application usage;

The Zero-Timing which is more commonly known as "blinky" mode and the "modified" mode which allows power hungry users to increase additional turbo timing in

the software.

Enrich applicable parameter item The ESC is equipped with 26 adjustable parameter items; including PWM frequency, brake frequency, softening, Boost, Turbo, and etc. The software parameters are inherited from the proven World championship winning ESC from the XR10 pro series. They can accurately adjust the power demand and

let users enjoy the ultimate control experience. Note! Please check the manual carefully. The wrong setting may

damage the power system! Built-in BEC supporting

high-voltage steering gear The ESC has a built-in BEC which can support a maximum

output current of up to 8A and the output voltage at either 6V or 7.4V. This will ensure constant power supplied to

today s high-torque servos in the market.

Seamless connectivity with OTA module box

and mobile phone Simple and convenient, parameter settings, firmware upgrading and other operations can

be established using Hobbywing' s OTA Bluetooth module and your mobile phone via

the Hobbywing app.

EzRun MINI28

Applications: 1/28th, 1/26th

Cont./Peak Current: 30A / 80A

Motor Type: Sensored / Sensorless Brushless Motors

Motor Limit: 1626 Size Motor

LiPo/NiMH Cells: 2S Lipo

BEC Output:

6V/7.4V Adjustable, 3.5A Peak (Switch-mode)

Size: 22.7x14.2x11.8mm

Weight: 5g (without wires)

Programming Port: Shared with throttle cable
